Product centerHOME > Product description > Ceramic 3535 SMD

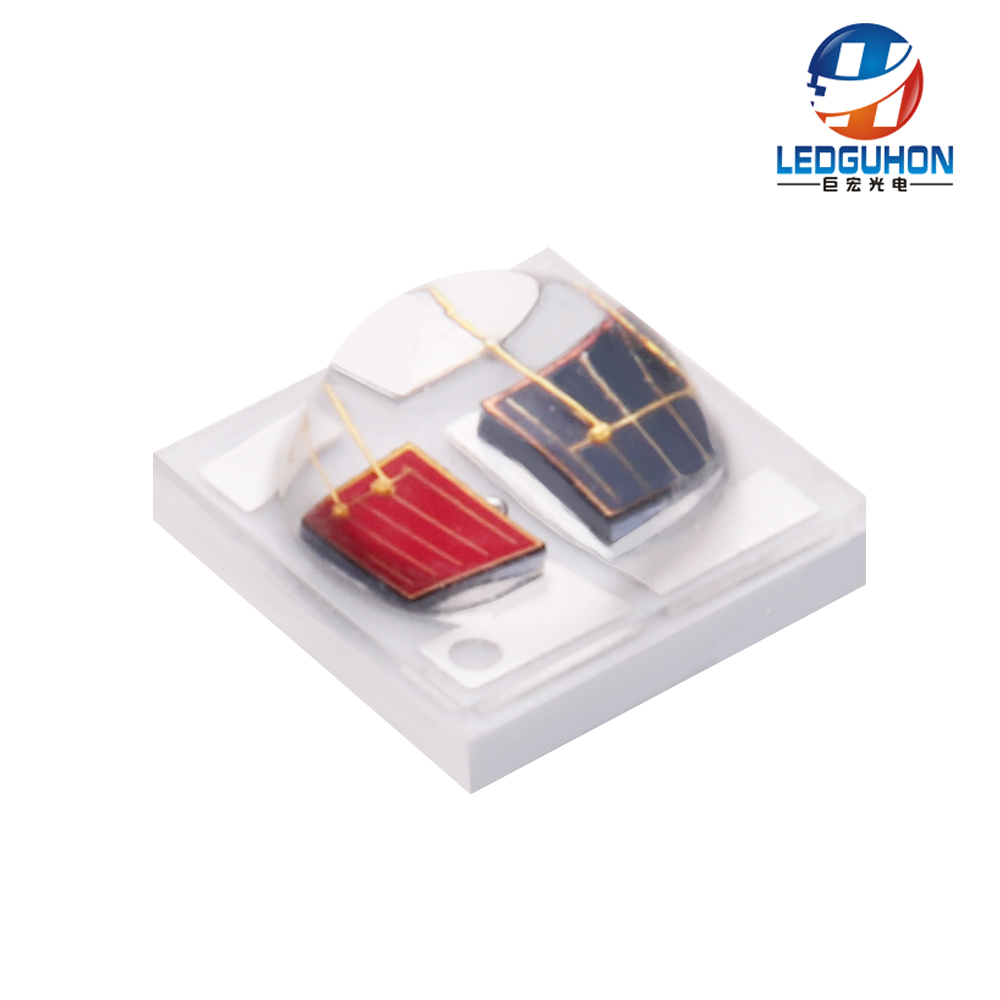

product picture

3535 R660+IR850 series

Product Feature:
★Adopt well-known vender’s chip package.
★99.99% gold wire welding
★Ceramic substrates,good heat sink
★Good bright spots and High bright

Product Use:
★Stage Light,Decorative Light
★Medical beauty light ,etc
3535 R660+IR850 series Medical beauty light LED


规格Datasheet

型号
Part No.		 功率
Power
(W)		 波长
Wavelength
(nm)		 流明
Luminous(lm)/
光功率
Light Power(mW)		 电压
Voltage
(V)		 电流
Current
(mA)		 角度
Angle
（°）
JH-3535ZRIR12G30-T7A-660-850 2 660 10-15 lm 2.0-2.4 350 120
850 100-150 mW 1.4-2.0 350 120
JH-3535ZRIR12G42-T7A-660-850 6 660 40-60 lm 2.2-2.6 700 120
850 300-500 mW 1.4-2.0 700 120
