Product centerHOME > Product description > Ceramic 3535 SMD

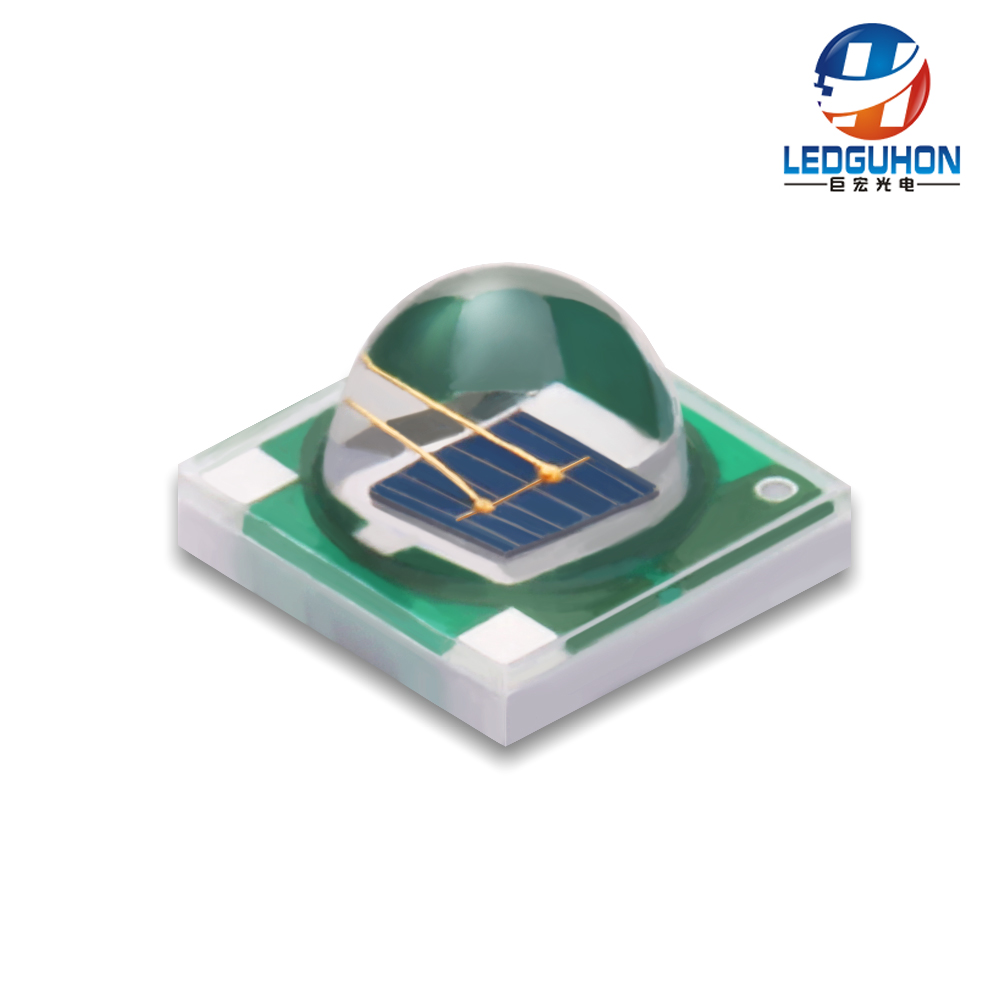

product picture

3535 IR LED 90deg

Product Feature:
★Adopt well-known vender’s chip package.
★99.99% gold wire welding
★Ceramic substrates,good heat sink

Product Use:
★Monitoring, Infrared equipment,etc
New product 3535 IR LED 90deg，can custom 740/810/850/940/1050nm and so on!


规格Datasheet

型号
Part No.		 功率
Power
(W)		 波长
Wavelength
(nm)		 光功率
Power
(mw)		 电压
Voltage
(V)		 电流
Current
(mA)		 角度
Angle
(deg)
JH-3535IR9G30 1 740/810/850/940/1050 1000-3000 1.2-2.2 350 90
JH-3535IR9G42 3 740/810/850/940/1050 1000-3000 1.2-2.2 700 90
