Product centerHOME > Product description > Ceramic 3535

product picture

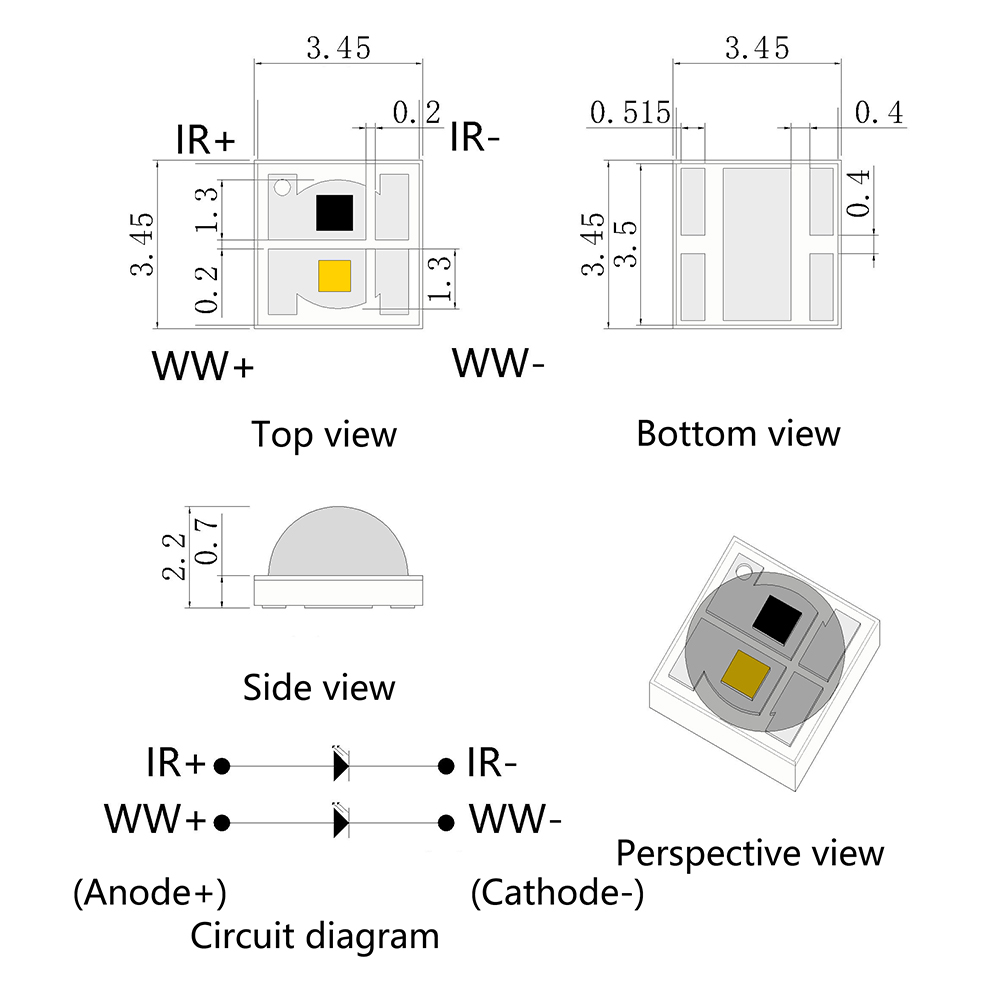

3535 White+IR Ceramic LED

Product Feature:
★Adopt well-known vender’s chip package.
★99.99% gold wire welding
★Ceramic package,good heat sink
★Good bright spots and High bright

Product Use:
★Monitoring light, security light
★AR, detector, medical equipment,etc

3535 White+IR Ceramic LED​



规格Datasheet

型号
Part No.		 功率
Power
(W)		 色温
CCT(K)/
波长
Wavelength
(nm)		 流明
Luminous(lm)/
光功率
Light Power(mW)		 电压
Voltage
(V)		 电流
Current
(mA)		 角度
Angle
（°）
JH-3535IRWW12G41-T7A-850 2 845-850nm 300-500mw 1.6-2.0 700 120
2800-3200k 120-140lm 3.0-3.4 350

注：功率，色温可按需求定制
Note: Power and color temperature can be customized according to needs
